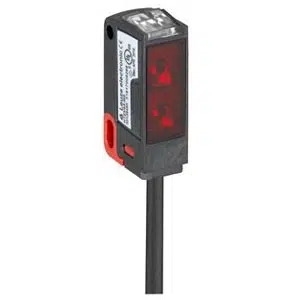

Leuze PRK23/P Photoelectric Sensor
The Leuze PRK23/P Photoelectric Sensor (Part No: 50138474 ) offers a Cubic design, Transistor, PNP output, PUR Cable 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK23/P |
Leuze PRK23/P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Black / Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail us for Leuze 3 -wire and 2,000 mm Cable retro-reflective sensor PRK23/P part no: 50138474 with budget-friendly prices. Technical Details of PRK23/P, 50138474 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 3 -wire and 2,000 mm Cable retro-reflective sensor. Elevate Your Project with a Quote for your requirement of Leuze 3 -wire and 2,000 mm Cable retro-reflective sensor. Rest assured, our pricing and support outshine other Suppliers.
