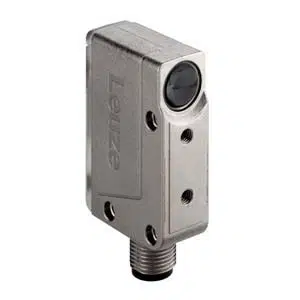

Leuze PRK18B.T3/4P-M12 | 50117367
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK18B.T3/4P-M12 |
Leuze -40 to 70 Β°C storage temperature retro-reflective sensor PRK18B.T3/4P-M12 - 50117367 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 4 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.333 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
The Leuze PRK18B.T3/4P-M12 Photoelectric Sensor uses a reflection principle with integrated autocollimation optics to provide consistent and accurate detection of highly transparent materials such as bottles, films, and glass sheets. It offers a sensing range of 0 to 4 meters with fast response capabilities and emits a visible red LED beam with a wavelength of 620 nm. Its switching frequency of 1,500 Hz and quick 0.333 ms response time make it a strong fit for fast-paced industrial applications requiring real-time detection feedback.
The sensor operates within a voltage range of 10β30 V DC and features dual PNP transistor outputs supporting both light switching and dark switching functionalities. Its compact cubic design (15 mm Γ 47 mm Γ 32.5 mm) allows easy installation in tight machine enclosures. With a rugged diecast zinc housing, glass lens cover, and a reliable M12 A-coded 4-pin male connector, the sensor ensures electrical and mechanical integrity in tough conditions. The onboard 270Β° potentiometer lets engineers precisely adjust sensitivity, while the LED display offers instant visual diagnostics.
Built to withstand extreme environments, this model supports an operating temperature of -40 to +60 Β°C and a storage temperature range up to -70 Β°C. Its IP-rated enclosure (IP67/IP69K) protects against dust, moisture, and high-pressure washdowns. Trusted by automation engineers globally, the PRK18B.T3/4P-M12 is ideal for industries like food & beverage, pharmaceuticals, and flexible packaging where reliability and transparency detection go hand in hand.
The Leuze PRK18B.T3/4P-M12 Photoelectric Sensor is designed to solve one of the toughest challenges in factory automationβaccurately detecting transparent or shiny objects on high-speed lines. Whether used in bottling plants, carton fill lines, or transparent film handling systems, it ensures detection precision even under changing ambient conditions.
Its robust metal body, high-frequency switching, and adjustable sensitivity make it a dependable choice for Indian manufacturing environments where sensors are exposed to dust, temperature variations, and washdown cycles. Maintenance teams will benefit from the intuitive 270Β° potentiometer for quick calibration and the LED display for troubleshooting during operation.
If your automation system needs fast, transparent object detection with rugged reliability, the Leuze PRK18B.T3/4P-M12 Photoelectric Sensor is the right solution. Ask for a quote today and optimize your industrial workflow with this trusted photoelectric sensor from Leuze.
