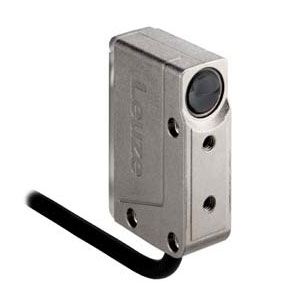

Leuze PRK18B.1/4P-6000 Photoelectric Sensor
The Leuze PRK18B.1/4P-6000 Photoelectric Sensor (Part No: 50117358 ) offers a Cubic design, Transistor, PNP output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK18B.1/4P-6000 |
Leuze PRK18B.1/4P-6000 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of bottle container |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 6 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 0.333 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 6,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm |
| Housing material | Metal |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
IndMALL Dealling Leuze 6000mm cable retro-reflective photoelectric sensors PRK18B.1/4P-6000 part no: 50117358 with the special pricing. Technical Specs Summary of PRK18B.1/4P-6000, 50117358 feature Cubic, Design Reflection principle, 15 mm x 47 mm x 32.5 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 6 m Sensing Distance, 4 -wire Number of conductors, Metal Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 6000mm cable retro-reflective photoelectric sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
