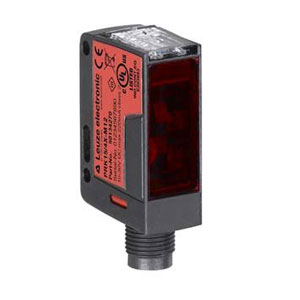

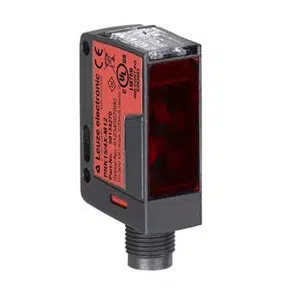

Leuze PRK15.D1/NX-M12 | 50137468
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK15.D1/NX-M12 |
Leuze 0.07-6 m Operating range retro-reflective photoelectric sensor PRK15.D1/NX-M12 - 50137468 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of stretch-wrapped objects |
| Special version | - |
| Sensing Distance | 0.07 ... 6 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
IndMALL Automation Dealing offers Leuze 0.07-6 m Operating range retro-reflective photoelectric sensor PRK15.D1/NX-M12 part no: 50137468 at attractive prices. Key Technical Features of PRK15.D1/NX-M12, 50137468 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.07 ... 6 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.07-6 m Operating range retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
