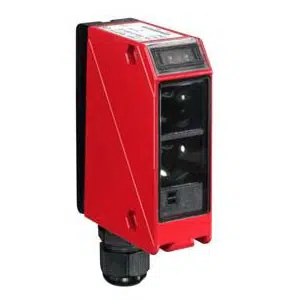

Leuze PRK 96M/P-2838-28 Photoelectric Sensor
The Leuze PRK 96M/P-2838-28 Photoelectric Sensor (Part No: Leuze terminal connection, 4-pin retro-reflective photoelectric sensor ) offers a Cubic design, Transistor, PNP output, -, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 96M/P-2838-28 |
Leuze PRK 96M/P-2838-28 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0 ... 7 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Type of terminal | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze terminal connection, 4-pin retro-reflective photoelectric sensor PRK 96M/P-2838-28 part no: 50082060 at unbeatable prices. Detailed Specifications of PRK 96M/P-2838-28, 50082060 feature Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 7 m Sensing Distance, Terminal Type of connection, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze terminal connection, 4-pin retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
