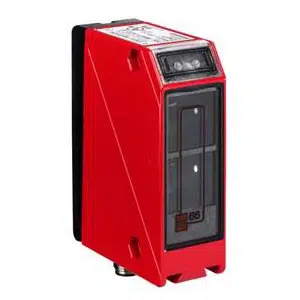

Leuze red LED light and two digital switching outputs retro-reflective sensor PRK 96M/P-1370-42 - 50025186 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
0.3 ... 8 m
Sensing Distance
-
Beam path
-
Light source
LED, Red
Wavelength
-
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
Transistor, PNP
Switching principle
Light switching
Switching frequency
500 Hz
Response time
-
Function
-
Type of connection
Connector
Thread size
M12
Type
-
Material
Metal
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
30 mm x 90 mm x 70 mm
Housing material
Metal
Metal housing
Zinc
Lens cover material
Glass
Housing color
-
Type of display
LED
Operational controls
270Β° potentiometer
Ambient temperature, operation
-40 ... 55 Β°C
Ambient temperature, storage
-
Degree of protection
IP 67
Ask for the Pricing of Leuze red LED light and two digital switching outputs retro-reflective sensor PRK 96M/P-1370-42 part no: 50025186 at unbeatable prices. Detailed Specifications of PRK 96M/P-1370-42, 50025186 feature Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, - Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze red LED light and two digital switching outputs retro-reflective sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
