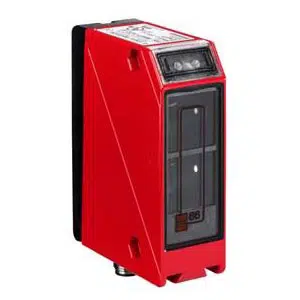

Leuze PRK 96M/P-1361-47 | 50082092
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 96M/P-1361-47 |
Leuze activation input, red LED light source, and IP 67 protection retro-reflective sensor PRK 96M/P-1361-47 - 50082092 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Activation input |
| Sensing Distance | 0.3 ... 8 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Transistor, PNP |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | - |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze activation input, red LED light source, and IP 67 protection retro-reflective sensor PRK 96M/P-1361-47 part no: 50082092 at economical prices. Specifications Overview for PRK 96M/P-1361-47, 50082092 reveals Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Transistor, PNP Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.3 ... 8 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze activation input, red LED light source, and IP 67 protection retro-reflective sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
