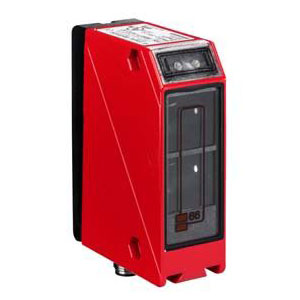

Leuze 0.3–8 m Operating range retro-reflective photoelectric sensor PRK 96M/P-1361.1-47 - 50104279 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
-
Sensing Distance
0.3 ... 8 m
Beam path
-
Light source
LED, Red
Wavelength
-
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC
Switching Output 1
Transistor, PNP
Switching principle
Light/dark switchable
Switching Output 2
-
Switching principle
-
Switching frequency
1,000 Hz
Response time
-
Function
-
Type of connection
Connector
Thread size
M12
Type
Male
Material
-
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
30 mm x 90 mm x 70 mm
Housing material
Metal
Metal housing
Zinc
Lens cover material
Glass
Housing color
-
Type of display
LED
Operational controls
270° potentiometer
Ambient temperature, operation
-40 ... 55 °C
Ambient temperature, storage
-
Degree of protection
IP 67
Call us for Leuze 0.3–8 m Operating range retro-reflective photoelectric sensor PRK 96M/P-1361.1-47 part no: 50104279 at the best rates. Technical Attributes of PRK 96M/P-1361.1-47, 50104279 are Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light/dark switchable Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.3 ... 8 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 0.3–8 m Operating range retro-reflective photoelectric sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
