In sourcing discussions, PRK-96K-R-1430-25 is often placed next to P&F Photo Sensor, Leuze Proximity Sensor and Leuze Ls5B Xx 200 M12 so procurement teams can align budgets and technical requirements effectively.

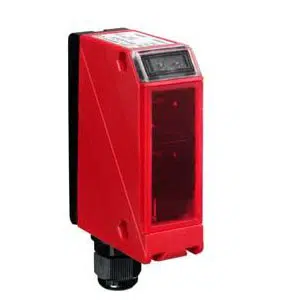

Leuze PRK 96K/R-1430-25 Photoelectric Sensor
The Leuze PRK 96K/R-1430-25 Photoelectric Sensor (Part No: Leuze IP 67 protection and 0.3β8 m operating range retro-reflective sensor ) offers a Cubic design, Relay, NC contact/NO contact output, -, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 96K/R-1430-25 |
Leuze PRK 96K/R-1430-25 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0.3 ... 8 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 20 ... 230 V, AC/DC |
| Switching Output 1 | Relay, NC contact/NO contact |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 20 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Type of terminal | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze IP 67 protection and 0.3β8 m operating range retro-reflective sensor PRK 96K/R-1430-25 part no: 50025168 with exclusive offers. Core System Specifications of PRK 96K/R-1430-25, 50025168 are Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Relay, NC contact/NO contact Switching Outputs 1, Light switching Switching principle, 20 ... 230 V, AC/DC Supply voltage UB, 0.3 ... 8 m Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze IP 67 protection and 0.3β8 m operating range retro-reflective sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
