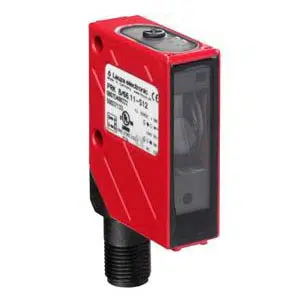

Leuze PRK 8/66 Photoelectric Sensor
The Leuze PRK 8/66 Photoelectric Sensor (Part No: 50036363 ) offers a Cubic design, Transistor, Push-pull output, PVC Cable 5 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 8/66 |
Leuze PRK 8/66 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 6.4 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 5 -wire |
| Wire cross section | 0.25 mmΒ² |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Send Your Inquiry for Leuze 0.1β6.4 m operating range retro-reflective sensor PRK 8/66 part no: 50036363 at affordable rates. Core System Specifications of PRK 8/66, 50036363 are Cubic, Design Reflection principle, 15 mm x 48 mm x 38 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.1 ... 6.4 m Sensing Distance, 5 -wire Number of conductors, Metal Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.1β6.4 m operating range retro-reflective sensor. Initiate Your Journey with a Quote for your requirement of Leuze 0.1β6.4 m operating range retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
