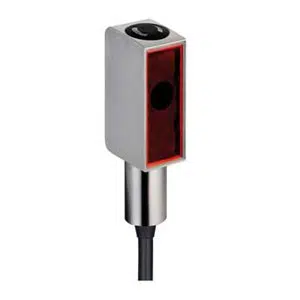

Leuze PRK 53/6.22,5000 Photoelectric Sensor
The Leuze PRK 53/6.22,5000 Photoelectric Sensor (Part No: 50121898 ) offers a Cubic design, Transistor, Push-pull output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 53/6.22,5000 |
Leuze PRK 53/6.22,5000 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation HYGIENE design Teach input |
| Sensing Distance | 0 ... 4 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 5,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 14 mm x 35.6 mm x 20.3 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | -30 ... 55 Β°C |
| Degree of protection | IP 67 / IP 69K |
Ask for the Pricing of Leuze 0β4 m operating range and 5000 mm cable connection retro-reflective sensor PRK 53/6.22,5000 part no: 50121898 at unbeatable prices. Detailed Specifications of PRK 53/6.22,5000, 50121898 feature Cubic, Design Reflection principle, 14 mm x 35.6 mm x 20.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 4 m Sensing Distance, 4 -wire Number of conductors, Stainless steel Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0β4 m operating range and 5000 mm cable connection retro-reflective sensor. It's Time to get a Quote for your requirement of Leuze 0β4 m operating range and 5000 mm cable connection retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
