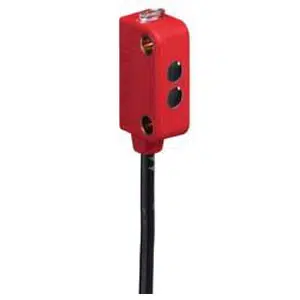

Leuze PRK 2/42 Photoelectric Sensor
The Leuze PRK 2/42 Photoelectric Sensor (Part No: 50112136 ) offers a Cubic design, Transistor, NPN output, PVC Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK 2/42 |
Leuze PRK 2/42 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of small parts |
| Special version | - |
| Sensing Distance | 0.07 ... 3.5 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 700 Hz |
| Response time | 0.72 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 8 mm x 23.1 mm x 12 mm |
| Housing material | Plastic |
| Lens cover material | Plastic/PC |
| Housing color | Red, RAL 3000 |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | -30 ... 75 Β°C |
| Degree of protection | IP 67 |
Call us for Leuze 0.07β3.5 m operating range retro-reflective sensor PRK 2/42 part no: 50112136 at the best rates. Technical Attributes of PRK 2/42, 50112136 are Cubic, Design Reflection principle, 8 mm x 23.1 mm x 12 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.07 ... 3.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 0.07β3.5 m operating range retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
