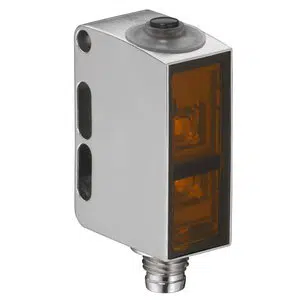

Leuze ODT55C.S3/L6-M8 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | ODT55C.S3/L6-M8 |
Leuze ODT55C.S3/L6-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Measurement value output Small light spot (S) Wash-Down design |
| Sensing Distance | 0.01 ... 0.08 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 750 Hz |
| Response time | 0.66 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 m |
| Housing material | Stainless steel |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 70 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 68 / IP 69K |
Send Us an Email for -40 ... 70 Β°C Silver part no: LED with budget-friendly prices. Technical Attributes of Silver, LED includes Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 m Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 12 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.01 ... 0.08 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Now's the Time to Secure Quote for your requirement of -40 ... 70 Β°C. Rest assured, our pricing and support outshine other Suppliers.
