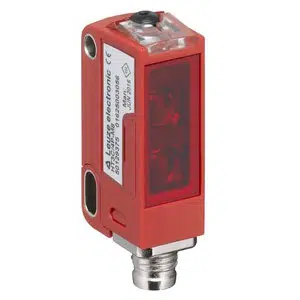

Leuze ODT3C.3/L6-M8 Photoelectric Sensor
Technical Specifications of Leuze ODT3C.3/L6-M8 50146591:
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | ODT3C.3/L6-M8 |
Leuze ODT3C.3/L6-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Measurement value output |
| Sensing Distance | 0.01 ... 0.15 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | square |
| Light spot size [at sensor distance] | 10 mm x 10 mm [100 mm] |
| Measurement range | 30 ... 150 mm |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 750 Hz |
| Response time | 0.66 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 69K |
Give Us a Call for ODT3C.3/L6-M8 50146591 at affordable rates. Specifications Overview for ODT3C.3/L6-M8 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, Connector, M8 Thread size, PC-ABS, Plastic Housing material, IP 67/IP 69K degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze distance diffuse sensor with background suppression.Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
