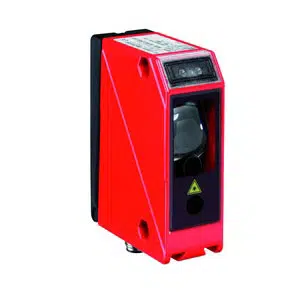

Leuze ODSL 96B M/C6-S12 | 50109290
Technical Specifications of Leuze ODSL 96B M/C6-S12 50109290:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Switching Output | Transistor, Push-pull |
| Light source | Laser, Red |
| Measurement range | 300 ... 10,000 mm |
Leuze 65M Sensing Distance Sensor ODSL 96B M/C6-S12, 50109290 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Switching Output | Transistor, Push-pull |
| Light source | Laser, Red |
| Measurement range | 300 ... 10,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output type | Current |
| Connection type | Connector |
| Thread size | M12 |
| No. of pins | 5 -pin |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Degree of protection | IP 67 IP 69K |
Send Your Inquiry for ODSL 96B M/C6-S12 50109290 at the best price. Here are the brief Technical Specifications of ODSL 96B M/C6-S12 are Transistor, Push-pull, 30 mm x 90 mm x 70 mm, Laser, Red Light source, 300 ... 10,000 mm, 18 ... 30 V, DC, Current, Connector, M12 Thread size, 5 -pin, Metal Housing material, Diecast zinc degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 65M Sensing Distance Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
