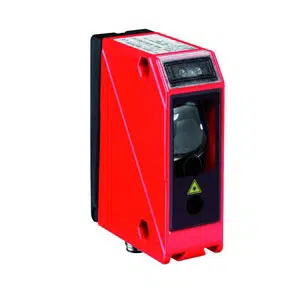

Leuze ODKL 96B M/C6-S12 | 50109297
Technical Specifications of Leuze ODKL 96B M/C6-S12 50109297:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Switching Output | Transistor, Push-pull |
| Light source | Laser, Red |
| Measurement range | 300 ... 25,000 mm |
Leuze against reflector Distance Sensor ODKL 96B M/C6-S12, 50109297 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Switching Output | Transistor, Push-pull |
| Light source | Laser, Red |
| Measurement range | 300 ... 25,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output type | Current |
| Connection type | Connector |
| Thread size | M12 |
| No. of pins | 5 -pin |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Degree of protection | IP 67 IP 69K |
IndMALL Automation Dealing offers ODKL 96B M/C6-S12 50109297 at unbeatable prices. The Main Technical Parameters of ODKL 96B M/C6-S12 are Transistor, Push-pull, 30 mm x 90 mm x 70 mm, Laser, Red Light source, 300 ... 25,000 mm, 18 ... 30 V, DC, Current, Connector, M12 Thread size, 5 -pin, Metal Housing material, Diecast zinc degree of protection. Take the First Step with a Quote for your requirement of Leuze against reflector Distance Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
