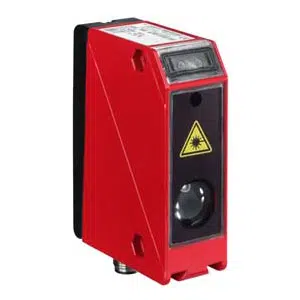

Leuze ODSL 96B M/66-2000-S12 | 50106599
Technical Specifications of Leuze ODSL 96B M/66-2000-S12 50106599:
| Brand | Leuze |
| Product Type | Optical Distance Sensor |
| Product | ODSL 96B M/66-2000-S12 |
Leuze 1 to 3mm Resolution Distance Sensor ODSL 96B M/66-2000-S12, 50106599 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Switching Output | Transistor, Push-pull |
| Light source | Laser, Red |
| Measurement range | 151 ... 2,000 mm |
| Supply voltage UB | 11 ... 30 V, DC |
| Analog output type | - |
| Connection type | Connector |
| Thread size | M12 |
| No. of pins | 5 -pin |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Degree of protection | IP 67 IP 69K |
IndMALL Automation Offers ODSL 96B M/66-2000-S12 50106599 with exclusive offers. Component Specifications of ODSL 96B M/66-2000-S12 are Transistor, Push-pull, 30 mm x 90 mm x 70 mm, Laser, Red Light source, 151 ... 2,000 mm, 11 ... 30 V, DC, -, Connector, M12 Thread size, 5 -pin, Metal Housing material, Diecast zinc degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 1 to 3mm Resolution Distance Sensor. Our competitive edge: better pricing and support than other Suppliers.
