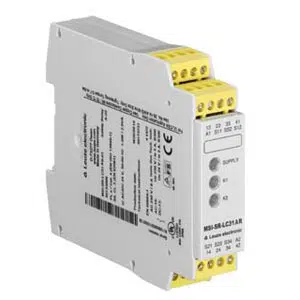

Leuze MSI-SR-ES31-03 | 50133023
Technical Specifications of Leuze MSI-SR-ES31-03 50133023:
| Brand | Leuze |
| Product Type | Safety Relay |
| Product | MSI-SR-ES31-03 |
Leuze Snap-on mounting Safety Relay MSI-SR-ES31-03, 50133023 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
| Functions | Contactor monitoring (EDM) Start/restart interlock (RES) |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 15 -pin |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 60 ms |
| Evaluation of the inputs | one- or two-channel |
| Input current | 90 mA |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 1.3 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | - |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 55 Β°C |
| Ambient Temperature, Storage | -- |
| Degree of protection | - |
Mail Us for your needs in Leuze Snap-on mounting Safety Relay MSI-SR-ES31-03 50133023 with budget-friendly prices. The Main Technical Parameters of MSI-SR-ES31-03 include dimensions of 22.5 mm x 106.5 mm x 114 mm, spring-cage terminals and 15 pins, it supports signal input, output, and voltage supply. Additionally, it provides 60 ms response time, one- or two-channel, 90 mA, 24 V, AC/DC, -15 ... 10 % 1.3 W, For 24 V, plus output load. Customize Your Experience with a Quote for your requirement of Leuze Snap-on mounting Safety Relay. Experience the difference with our competitive pricing and superior support over other Suppliers.
