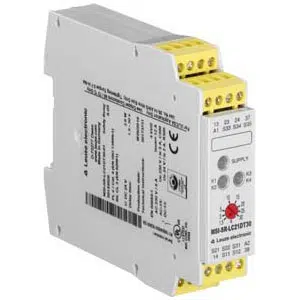

Leuze MSI-DT30B-02 | 547936
Technical Specifications of Leuze MSI-DT30B-02 547936:
| Brand | Leuze |
| Product Type | Safety Relay |
| Product | MSI-DT30B-02 |
Leuze One or Two Channel Operation Safety Relay MSI-DT30B-02, 547936 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 111 mm x 114.5 mm |
| Functions | Cross circuit monitoring One- or two-channel operation Start/restart interlock (RES) Time-delayed shutdown (STOPP1) |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to device Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | - |
| Evaluation of the inputs | - |
| Input current | - |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 1.8 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | -20 ... 55 °C |
| Ambient Temperature, Storage | -40 ... 70 °C |
| Degree of protection | IP 20 (terminals) IP 40 (housing) |
