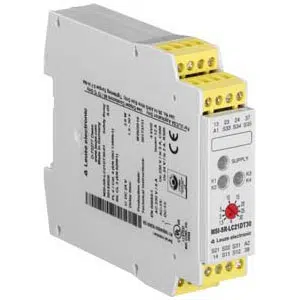

Leuze MSI-DT30B-01 | 547935
Technical Specifications of Leuze MSI-DT30B-01 547935:
| Brand | Leuze |
| Product Type | Safety Relay |
| Product | MSI-DT30B-01 |
Leuze Cross Circuit Monitoring Safety Relay MSI-DT30B-01, 547935 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 99 mm x 114.5 mm |
| Functions | Cross circuit monitoring One- or two-channel operation Start/restart interlock (RES) Time-delayed shutdown (STOPP1) |
| Restart | Automatic Manual |
| Type of Terminal | Screw terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to device Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | - |
| Evaluation of the inputs | - |
| Input current | - |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 1.8 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | -20 ... 55 Β°C |
| Ambient Temperature, Storage | -40 ... 70 Β°C |
| Degree of protection | IP 20 (terminals) IP 40 (housing) |
Obtain a Quote for Leuze Cross Circuit Monitoring Safety Relay MSI-DT30B-01 547935 at economical prices. Specifications Overview for MSI-DT30B-01 reveals 22.5 mm x 99 mm x 114.5 mm, Automatic/Manual, Screw terminal, 16 -pin. It also includes Connection to device/Voltage supply, No. of in connections 1 Piece(s), Plastic Housing Material. Take the First Step with a Quote for your requirement of Leuze Cross Circuit Monitoring Safety Relay. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
