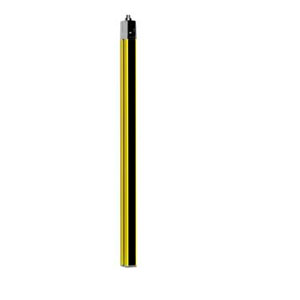

Leuze MLC310R20-900 Safety Light Curtain
| Brand | Leuze |
| Product Type | Safety Light Curtain |
| Model Number | MLC310R20-900 |
Leuze MLC310R20-900 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Series | MLC 300 |
| Device type | Receiver |
| Contains | 2x BT-NC sliding block |
| Application | Hand protection |
| Functions | Automatic start/restart, Transmission channel changeover |
| Resolution | 20 mm |
| Protective field height | 900 mm |
| Synchronization | Optical between transmitter and receiver |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 150 mA |
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) |
| Safety related switching output Type | Safety-related switching output OSSD |
| Switching voltage high, min. | 18 V |
| Switching voltage low, max. | 2.5 V |
| Switching voltage, typ. | 22.5 V |
| Voltage type | DC |
| Current load, max. | 380 mA |
| Load inductivity | 2,000 µH |
| Load capacity | 0.03 µF |
| Residual current, max. | 0.2 mA |
| Voltage drop | 1.5 V |
| O/P 1: Switching Principle | 24 V switching |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | 24 V switching |
| O/P 2: Switching Output | Transistor, PNP |
| Response time | 17 ms |
| Restart delay time | 100 ms |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | M12 Connector 5-pin |
| Type | Male |
| Dimension (W x H x L) | 29 mm x 966 mm x 35.4 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets, Mounting on Device Column, Swivel mount |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | -15 ... 55 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 1,050 g |
The Leuze MLC310R20-900 Safety Light Curtain is part of the advanced MLC 300 series, purpose-built for detecting finger and hand intrusion in machine openings. Its 900 mm protective field height combined with a fine 20 mm resolution allows it to detect even the smallest objects across larger vertical areas—ideal for wide access zones in packaging lines, CNC machines, or robotic stations. This model is a receiver unit that pairs via optical synchronization with the transmitter, eliminating extra cabling and simplifying setup. Built-in safety features such as automatic restart and transmission channel changeover enhance its reliability during dynamic industrial operations.
It operates on a standard 24 V DC power supply (±20% range) and consumes up to 150 mA of current. The system features 2 OSSD safety outputs using PNP transistor switching, supporting a switching voltage up to 22.5 V and a max load of 380 mA. The quick response time of 17 ms ensures that the machine halts instantly in case of intrusion. Designed with practicality in mind, the unit connects via a 5-pin M12 male connector, allowing easy integration with most PLCs. Its compact build—29 mm x 966 mm x 35.4 mm—fits into space-constrained setups without compromising coverage.
The rugged aluminum housing, PMMA lens cover, and diecast zinc end caps offer IP65 protection, making the MLC310R20-900 suitable for dusty, humid, or vibration-prone environments. It operates effectively between -15°C and 55°C, withstanding humidity levels up to 95% (non-condensing). For additional datasheets, certifications, and setup guidelines, visit the official Leuze website.
The Leuze MLC310R20-900 Safety Light Curtain is widely used in automated cutting machines, high-speed conveyor systems, and robotic loading stations where wide-area hand protection is necessary. Its long sensing field makes it perfect for guarding large industrial machine openings while ensuring zero interference with workflow or productivity.
Installation is made easy with options like groove mounting, swivel brackets, or column attachments. Engineers appreciate the LED diagnostics and optical sync for minimizing downtime during maintenance. The unit’s M12 connector allows fast, standard-compliant electrical integration. Its robust performance, fast response, and global safety compliance make it a go-to choice for OEMs and plant safety engineers alike.
For facilities demanding efficient safety solutions across wide machine openings, the Leuze MLC310R20-900 Safety Light Curtain offers reliability, precision, and durability. Reach out now for a custom quote and benefit from our technical support and competitive pricing.
