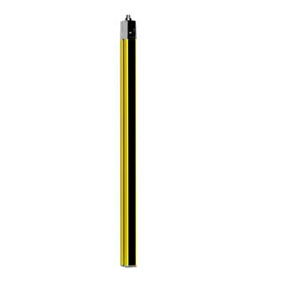

Leuze MLC300T20-1500 Safety Light Curtain
Leuze MLC300T20-1500 Safety Light Curtain transmitter offers 20 mm resolution and 1,500 mm protective field height for hand protection. Within the Leuze Safety Light Curtain range and ELC series, the Leuze 1,500mm Light Curtain Transmitter MLC300T20-1500 supports 0 ... 15 m operating range, optical synchronization, infrared LED at 940 nm, 24 V DC supply, M12 5-pin connector, IP65 protection, aluminum housing, and 50 mA maximum current consumption.
| Brand | Leuze |
| Product Type | Safety Light Curtain |
| Product | MLC300T20-1500 |
Leuze MLC300T20-1500 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| Series | MLC 300 |
| Device type | Transmitter |
| Contains | 2x BT-NC sliding block |
| Application | Hand protection |
| Resolution | 20 mm |
| Protective field height | 1,500 mm |
| Operating range | 0 ... 15 m |
| Synchronization | Optical between transmitter and receiver |
| Light source | LED, Infrared |
| Wavelength | 940 nm |
| Mean power of transmitter diode | 50 Β΅W |
| Transmitted-signal shape | Pulsed |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 50 mA |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | M12 Connector 5-pin |
| Type | Male |
| Dimension (W x H x L) | 29 mm x 1,566 mm x 35.4 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets, Mounting on Device Column, Swivel mount |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | 0 ... 55 Β°C |
| Ambient temperature, storage | -30 ... 70 Β°C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 1,650 g |
The MLC300T20-1500 Leuze 1,500mm Light Curtain Transmitter is a Safety Light Curtain transmitter designed for defined hand protection in industrial automation systems. It provides 20 mm resolution, 1,500 mm protective field height, and an operating range of 0 ... 15 m. Operating on 24 V DC, it uses optical synchronization between transmitter and receiver to maintain stable signal transmission. The MLC300T20-1500 belongs to the MLC 300 series and integrates with machine safety interfaces.
In manufacturing plants, the MLC300T20-1500 is used on conveyors, packaging equipment, robotic cells, and automated assembly lines requiring extended hand protection zones. The infrared LED with pulsed signal transmission ensures consistent beam integrity across the monitored area. With IP65-rated aluminum housing and an M12 5-pin connector, it supports reliable installation in industrial environments.
The Leuze MLC300T20-1500 Safety Light Curtain transmitter combines defined protective height, controlled current consumption, and Class III protection for safety circuit integration. Overvoltage and short-circuit protection contribute to stable performance within control panels. As part of the Leuze safety portfolio, the MLC300T20-1500 is suitable for industrial automation applications across India requiring dependable safeguarding performance.
