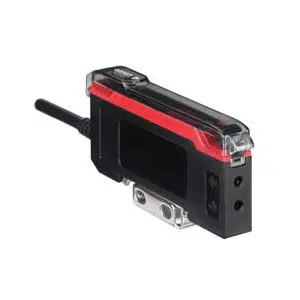

Leuze LV463.XV7/4T-150-M12 Fiber Optic Sensor
The Leuze LV463.XV7/4T-150-M12 fiber optic sensor delivers 0.01 ms response time with 50,000 Hz switching frequency for industrial automation. Manufactured by Leuze, the LV463.XV7/4T-150-M12 Leuze 100 mA Switching Current Fiber Optic Sensor operates on 10–24 V DC, uses a 660 nm red LED, and supports light/dark switchable PNP output. This model belongs to the LV Series and features 150 mm cable length, IP50 / NEMA 1 protection, and ABS plastic housing.
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.XV7/4T-150-M12 |
Leuze LV463.XV7/4T-150-M12 Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Short response time Time function |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 10 ... 24 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: ≥(UB -2.5V) low: ≤ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching principle | Light/dark switchable |
| Switching frequency | 50,000 Hz |
| Response time | 0.01 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 150 mm |
| Cable color | Black |
| Number of conductors | - |
| Thread size | M12 |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 °C |
| Ambient temperature, storage | -20 ... 85 °C |
| Degree of protection | IP 50 NEMA 1 |
The LV463.XV7/4T-150-M12 Leuze 100 mA Switching Current Fiber Optic Sensor is designed for high-speed optical signal processing in industrial automation systems. This Leuze fiber optic sensor provides a 100 mA switching current, 0.01 ms response time, and 50,000 Hz switching frequency to support precise detection tasks. It is part of the Leuze LV Series and is used where fast, stable digital output is required.
In applications such as conveyors, packaging machines, automated assembly lines, and inspection systems, the LV463.XV7/4T-150-M12 fiber optic sensor enables reliable detection of fast-moving objects. Its defined electrical behavior and light/dark switchable logic allow consistent signal interpretation. The compact cubic housing and cable connection support flexible installation in confined automation layouts.
The Leuze LV463.XV7/4T-150-M12 fiber optic sensor provides dependable performance for continuous industrial operation. With controlled optical emission, stable PNP transistor output, and clearly defined electrical limits, it ensures predictable system behavior. As a member of the Leuze LV Series, the LV463.XV7/4T-150-M12 is suitable for automation environments requiring repeatable, high-speed optical sensing.
