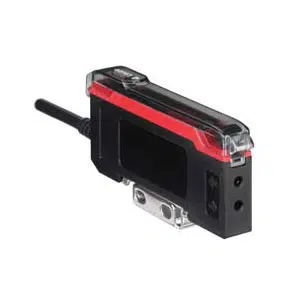

Leuze 50133965 Fiber Optic Sensor
Leuze LV463.XV7/2T-M8 fiber optic sensor operates with 10–24 V DC, red LED 660 nm, NPN output and M8 connector. Manufactured by Leuze, the LV463.XV7/2T-M8 Leuze Plastic Housing Fiber Optic Sensor supports glass and plastic fiber optics, offers 0.05 ms response time, and reaches 50,000 Hz switching frequency. This model is part of the LV Series and uses a compact ABS plastic housing with LED display and rocker pressure switch controls.
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.XV7/2T-M8 |
Leuze LV463.XV7/2T-M8 Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Short response time Time function |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 10 ... 24 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: ≥(UB -2.5V) low: ≤ 2.5 V |
| Switching output 1 | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 50,000 Hz |
| Response time | 0.05 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black; Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 °C |
| Ambient temperature, storage | -20 ... 85 °C |
| Degree of protection | IP 50 NEMA 1 |
The LV463.XV7/2T-M8 Leuze Plastic Housing Fiber Optic Sensor is designed for precise optical detection in industrial automation systems. This Leuze fiber optic sensor operates with a 10–24 V DC supply, red LED 660 nm light source, and a single NPN switching output. As part of the LV Series, the LV463.XV7/2T-M8 supports applications requiring fast and stable signal switching using glass or plastic fiber optics.
In conveyors, packaging equipment, automated assembly lines, and inspection stations, the LV463.XV7/2T-M8 fiber optic sensor delivers consistent detection of fast-moving objects. Its 0.05 ms response time and 50,000 Hz switching frequency help maintain accuracy in high-speed processes. The M8 connector and cubic plastic housing allow easy installation in space-constrained industrial environments.
The Leuze LV463.XV7/2T-M8 fiber optic sensor combines rocker pressure switch and slide switch operational controls for controlled setup and adjustment. Its plastic ABS housing supports reliable operation within defined industrial conditions. As a member of the Leuze LV Series, the LV463.XV7/2T-M8 is suitable for continuous industrial automation use where dependable optical amplification and fast switching performance are required.
