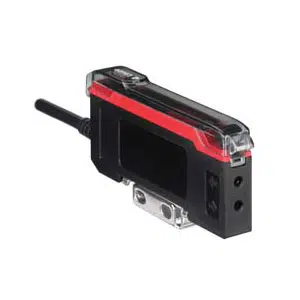

Leuze LV463.XR7/L4 Fiber Optic Sensor
The Leuze LV463.XR7/L4 Fiber Otpic Sensor offers a Cubic design, Transistor, Push-pull output, 2,000 mm Cable, 4 -wire. Manufactured by Leuze under the Leuze Fiber Otpic Sensor category, this model belongs to the LV Series.
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.XR7/L4 |
Leuze LV463.XR7/L4 Fiber Optic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Large operating range Time function |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 10 ... 24 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: β₯(UB -2.5V) low: β€ 2.5 V |
| Switching output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 21 Hz |
| Response time | 24 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 Β°C |
| Ambient temperature, storage | -20 ... 85 Β°C |
| Degree of protection | IP 50 NEMA 1 |
Call us for Leuze 660nm Wavelength Fiber Optic Sensor LV463.XR7/L4 50134008 at competitive rates. Technical Attributes of of LV463.XR7/L4 are Cubic Design, 10 mm x 31.5 mm x 72 mm Dimensions, LED, Red
Light Source, 660 nm Wavelength, 10 ... 24 V, DC Supply Voltage, Transistor, Push-pull Output Cable, 2,000 mm, 21 Hz Switching Principle, Plastic Housing color, -10 ... 55 Β°C degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 4 wire Conductor Fiber Optic Sensor.
