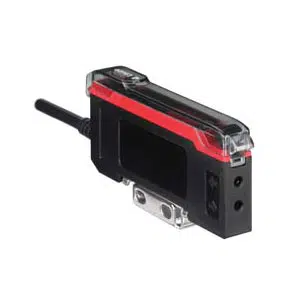

Leuze LV463.XR7/4TV-150-M12 | 50133986
Technical Specifications of Leuze LV463.XR7/4TV-150-M12 50133986:
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.XR7/4TV-150-M12 |
Leuze Digital switching output Fiber Optic Sensor LV463.XR7/4TV-150-M12, 50133986 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Large operating range |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 12 ... 24 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: β₯(UB -2.5V) low: β€ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching principle | Light/dark switchable |
| Switching output 2 | - |
| Switching principle | - |
| Switching frequency | 21 Hz |
| Response time | 24 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 150 mm |
| Cable color | Black |
| Number of conductors | - |
| Thread size | M12 |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 Β°C |
| Ambient temperature, storage | -20 ... 85 Β°C |
| Degree of protection | IP 50 NEMA 1 |
Reach Us by Email for Leuze LV463.XR7/4TV-150-M12 | 50133986 50133986 Leuze Digital switching output Fiber Optic Sensor at Discounted Rates. Key Technical Features of 50133986 are Cubic Design, 10 mm x 31.5 mm x 72 mm Dimensions, LED, Red Light Source, 660 nm Wavelength, 12 ... 24 V, DC Supply Voltage, Light/dark switchable
OutputCable with connector type, 150 mm Cable Length, M12 Thread Size, 21 Hz Switching Frequency, Black
Red Housing color, IP 50
NEMA 1 Degree of Protection. Navigate Your Needs with a Quote for your requirement of Leuze Digital switching output Fiber Optic Sensor.
