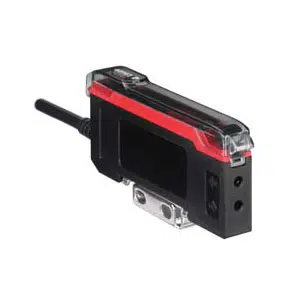

Leuze LV463.XR7/4T-150-M12 Fiber Optic Sensor
The Leuze LV463.XR7/4T-150-M12 fiber optic sensor uses a 660 nm LED and light/dark switchable PNP output for automation use. Manufactured by Leuze, the LV463.XR7/4T-150-M12 Leuze Light/dark Switchable Principle Fiber Optic Sensor supports glass and plastic fiber optics, operates on 10–24 V DC, and provides a 100 mA switching current. This model belongs to the LV Series and features a 150 mm cable connection, 24 ms response time, and IP50 / NEMA 1 protection.
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.XR7/4T-150-M12 |
Leuze LV463.XR7/4T-150-M12 Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Large operating range Time function |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 10 ... 24 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: ≥(UB -2.5V) low: ≤ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching principle | Light/dark switchable |
| Switching output 2 | - |
| Switching principle | - |
| Switching frequency | 21 Hz |
| Response time | 24 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 150 mm |
| Cable color | Black |
| Number of conductors | - |
| Thread size | M12 |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 °C |
| Ambient temperature, storage | -20 ... 85 °C |
| Degree of protection | IP 50 NEMA 1 |
The LV463.XR7/4T-150-M12 Leuze Light/dark Switchable Principle Fiber Optic Sensor is a compact optical evaluation unit used in industrial automation systems. This Leuze fiber optic sensor operates with a 660 nm red LED, 10–24 V DC supply, and a PNP digital switching output to deliver controlled signal processing. It belongs to the Leuze LV Series and is designed for use with glass or plastic fiber optics in automation environments.
In industrial applications, the LV463.XR7/4T-150-M12 fiber optic sensor is used in conveyors, packaging machines, automated assembly lines, and material handling systems. Its defined 24 ms response time and light/dark switchable principle support reliable object detection. The fixed 150 mm cable length ensures predictable installation and stable electrical behavior across automation equipment.
The Leuze LV463.XR7/4T-150-M12 fiber optic sensor provides dependable optical signal evaluation for industrial automation tasks. With controlled light emission, stable switching behavior, and standardized mechanical dimensions, it supports long-term system reliability. As part of the Leuze LV Series, the LV463.XR7/4T-150-M12 is suitable for structured and repeatable automation processes requiring consistent detection performance.
