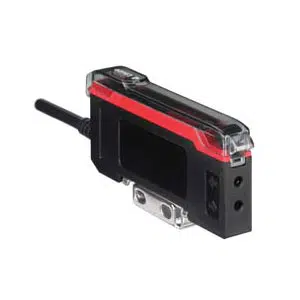

Leuze LV463.7/2T Fiber Optic Sensor
The Leuze LV463.7/2T Fiber Otpic Sensor offers a Cubic design, Transistor, NPN output, 2,000 mm Cable, 4 -wire. Manufactured by Leuze under the Leuze Fiber Otpic Sensor category, this model belongs to the LV Series.
| Brand | Leuze |
| Product Type | Fiber Optic Sensor |
| Product | LV463.7/2T |
Leuze LV463.7/2T Fiber Optic Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
| Suitable for | Glass fiber optics Plastic fiber optics |
| Special version | Time function |
| Light Source | LED, Red |
| Wavelength | 660 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage UB | 12 ... 24 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching current, max | 100 mA |
| Switching voltage | high: โฅ(UB -2.5V) low: โค 2.5 V |
| Switching output 1 | Transistor, NPN |
| Switching principle | Light/dark switchable |
| Switching frequency | 2,500 Hz |
| Response time | 0.2 ms |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Rocker pressure switch Slide switch |
| Ambient temperature, operation | -10 ... 55 ยฐC |
| Ambient temperature, storage | -20 ... 85 ยฐC |
| Degree of protection | IP 50 NEMA 1 |
Talk to Our Engineer for Leuze Transistor NPN o/p Fiber Optic Sensor LV463.7/2T 50118408 with exclusive offers. Core System Specifications of LV463.7/2T are Cubic Design, 10 mm x 31.5 mm x 72 mm Dimensions, LED, Red Light Source, 660 nm Wavelength, 12 ... 24 V, DC Supply Voltage, Transistor, NPN Output Cable, 2,000 mm, 2,500 Hz Switching Principle, Plastic Housing color, -10 ... 55 ยฐC degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Transistor NPN o/p Fiber Optic Sensor.
