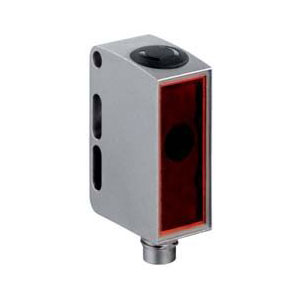

Leuze LSS 55.H2O,200-S12 Photoelectric Sensor
The Leuze LSS 55.H2O,200-S12 Photoelectric Sensor (Part No: 50127771 ) offers a Throughbeam principle, - distance, PUR 200 mm cable with M12 connector 4-pin .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSS 55.H2O,200-S12 |
Leuze LSS 55.H2O,200-S12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 55 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 64 m; Guaranteed operating range |
| Operating range limit | 0... 80 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Infrared |
| Wavelength | 1,450 nm |
| Light spot size [at sensor distance] | - |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | PUR 200 mm cable with M12 connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel: AISI 316L |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -30 ... 55 Β°C Storage: -30 ... 55 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 60 g |
Reach Us by Email for Leuze Detection of Aqueous Liquids LSS 55.H2O,200-S12 part no: 50127771at the best rates. Technical Configuration of LSS 55.H2O,200-S12, 50127771 are 55 series, Transmitter device, 0 ... 64 m; Guaranteed operating range operating range, 0... 80 m; Typical operating range operating range limit, Divergent beam path, LED, Infrared light source, 1,450 nm wavelength, Round light spot geometry, 10 ... 30 V, DC power supply, PUR 200 mm cable with M12 connector, 4-pin, 14 mm x 35.5 mm x 25 mm dimensions, Silver housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Detection of Aqueous Liquids . We're committed to offering more favorable pricing and more responsive support than other Distributors.
