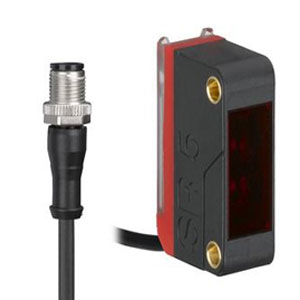

Leuze LS5B/XX-200-M12 Photoelectric Sensor
The Leuze LS5B/XX-200-M12 Photoelectric Sensor (Part No: 50149741 ) offers a Throughbeam principle, 0 ... 15 m operating range, PVC 200 mm cable with M12 connector 3-wire and 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS5B/XX-200-M12 |
Leuze LS5B/XX-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 5B Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 15 m |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | PVC 200 mm cable with M12 connector |
| Number of conductors or Pins | 3-wire and 4-pin |
| Dimension | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 40 g |
Please speak to our Technical Engineer for Leuze 20 mm Length Transmitter Sensor LS5B/XX-200-M12 part no: 50149741 at attractive prices. Technical Specs Summary of LS5B/XX-200-M12, 50149741 includes 5B series, Throughbeam, Transmitter device, 0 ... 15 m operating range, LED, Red light source, 645 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 20 mA current, PVC 200 mm cable with M12 connector, 3-wire and 4-pin, 11 mm x 32.4 mm x 20 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 20 mm Length Transmitter Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
