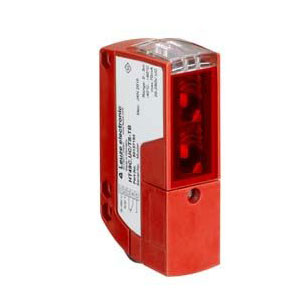

Leuze LS49CI.8-TB Photoelectric Sensor
The Leuze LS49CI.8-TB Photoelectric Sensor (Part No: 50134453 ) offers a Throughbeam principle, 0... 150 m operating range, Spring-cage terminal 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS49CI.8-TB |
Leuze LS49CI.8-TB Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 49C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 150 m |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | Spring-cage terminal |
| Number of conductors or Pins | 5 -pin |
| Dimension | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic: PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 150 g |
Mail Us for Leuze 55.5mm Length Transmitter Sensor LS49CI.8-TB part no: 50134453 at the lowest pricing. Technical Specs Summary of LS49CI.8-TB, 50134453 are 49C series, Throughbeam, Transmitter device, activation input special version, 0... 150 m operating range, LED, Infrared light source, 860 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 20 mA current, Spring-cage terminal, 5 -pin, 31 mm x 104 mm x 55.5 mm dimensions, Red housing color, LED display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 55.5mm Length Transmitter Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
