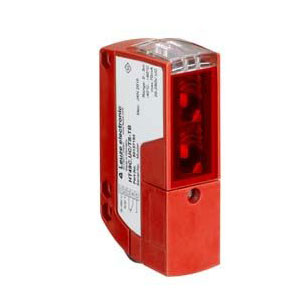

Leuze LS49C.UC Photoelectric Sensor
The Leuze LS49C.UC Photoelectric Sensor (Part No: 50127438 ) offers a Throughbeam principle, 0... 150 m operating range, PVC Cable, 2m Length 2-wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS49C.UC |
Leuze LS49C.UC Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 49C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 150 m |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Power Supply | 20 ... 250 V, AC/DC |
| Open-circuit current | - |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 2-wire |
| Dimension | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic: PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 150 g |
Send Your Inquiry for Leuze PVC 2M Cable 2-wire Transmitter Sensor LS49C.UC part no: 50127438 at unbeatable prices. The Main Technical Parameters of LS49C.UC, 50127438 feature 49C series, Throughbeam, Transmitter device, 0... 150 m operating range, LED, Red light source, 630 nm wavelength, 20 ... 250 V, AC/DC power supply, PVC Cable, 2m Length, 2-wire, 31 mm x 104 mm x 55.5 mm dimensions, Red housing color, LED display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze PVC 2M Cable 2-wire Transmitter Sensor. Experience the difference with our competitive pricing and superior support over other Traders.
