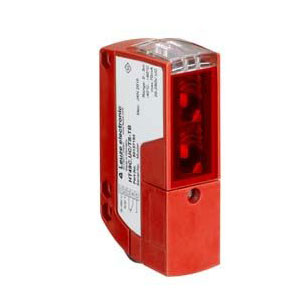

Leuze LS49C.UCH/TB Photoelectric Sensor
The Leuze LS49C.UCH/TB Photoelectric Sensor (Part No: 50130462 ) offers a Throughbeam principle, 0... 150 m operating range, Spring-cage terminal 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS49C.UCH/TB |
Leuze LS49C.UCH/TB Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 49C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 150 m |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Power Supply | 20 ... 250 V, AC/DC |
| Open-circuit current | - |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | Spring-cage terminal |
| Number of conductors or Pins | 5 -pin |
| Dimension | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic: PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 150 g |
IndMALL Automation Dealing offers Leuze Terminal 55.5 mm Transmitter Sensor LS49C.UCH/TB part no: 50130462 at attractive prices. Key Technical Features of LS49C.UCH/TB, 50130462 are 49C series, Throughbeam, Transmitter device, 0... 150 m operating range, LED, Red light source, 630 nm wavelength, 20 ... 250 V, AC/DC power supply, Spring-cage terminal, 5 -pin, 31 mm x 104 mm x 55.5 mm dimensions, Red housing color, LED display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Terminal 55.5 mm Transmitter Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
