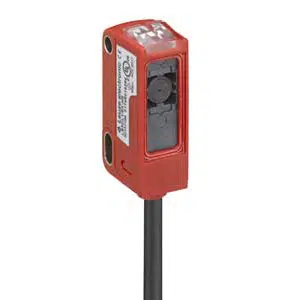

Leuze LS3CL1/XX Photoelectric Sensor
The Leuze LS3CL1/XX Photoelectric Sensor (Part No: 50137197 ) offers a Throughbeam principle, 2.5 mm x 2 mm [1,000 mm] distance, PUR Cable, 2m Length 4 -wire .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS3CL1/XX |
Leuze LS3CL1/XX Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 3C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Operating range limit | 0 ... 10 m; Typical operating range |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Light spot size [at sensor distance] | 2.5 mm x 2 mm [1,000 mm] |
| Type of light spot geometry | elliptic |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 55 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 50 g |
IndMALL Offers Leuze 650nm wavelength Throughbeam Sensor LS3CL1/XX part no: 50137197 at economical Choices. Product Tech Specs of LS3CL1/XX, 50137197 include 3C series, Transmitter device, 0 ... 5 m; Guaranteed operating range operating range, 0 ... 10 m; Typical operating range operating range limit, Collimated beam path, Laser, Red light source, 650 nm wavelength, laser class: 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014), 2.5 mm x 2 mm [1,000 mm]light spot size, elliptic light spot geometry, 10 ... 30 V, DC power supply, PUR Cable, 2m Length , 4 -wire , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 650nm wavelength Throughbeam Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
