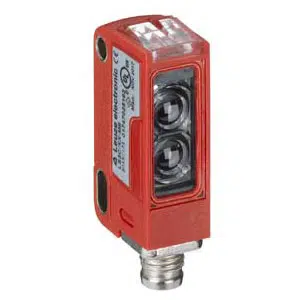

Leuze LS3C/XX-M8 Photoelectric Sensor
The Leuze LS3C/XX-M8 Photoelectric Sensor (Part No: 50137171 ) offers a Throughbeam principle, 4 mm [100 mm] distance, M8 Connector 4-pin .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS3C/XX-M8 |
Leuze LS3C/XX-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 3C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Operating range limit | 0.05 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 632 nm |
| Light spot size [at sensor distance] | 4 mm [100 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 10 g |
Reach Us by Email for Leuze Throughbeam Photo Sensor Transmitter LS3C/XX-M8 part no: 50137171at the best rates. Technical Configuration of LS3C/XX-M8, 50137171 are 3C series, Transmitter device, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 632 nm wavelength, 4 mm [100 mm]light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, M8 Connector, 4-pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Throughbeam Photo Sensor Transmitter. We're committed to offering more favorable pricing and more responsive support than other Distributors.
