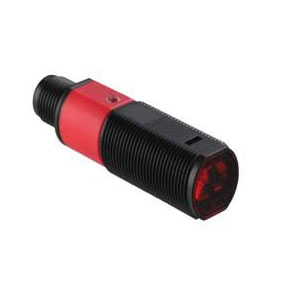

Leuze LS318BI/9D-M12 Photoelectric Sensor
The Leuze LS318BI/9D-M12 Photoelectric Sensor (Part No: 50129507 ) offers a Throughbeam principle, 0 ... 23 m operating range, M12 Connector 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS318BI/9D-M12 |
Leuze LS318BI/9D-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 318B Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 23 m |
| Light source | LED, Infrared |
| Wavelength | 850 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension | 18 mm x 46 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 50 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 20 g |
Ask for the Pricing of Leuze M18 46mm Length Transmitter Sensor LS318BI/9D-M12 part no: 50129507 at unbeatable prices. Detailed Specifications of LS318BI/9D-M12, 50129507 feature 318B series, Throughbeam, Transmitter device, 0 ... 23 m operating range, LED, Infrared light source, 850 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 15 mA current, M12 Connector, 4-pin, 18 mm x 46 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze M18 46mm Length Transmitter Sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
