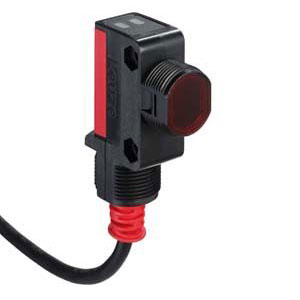

Leuze LS28/9D-M12 Photoelectric Sensor
The Leuze LS28/9D-M12 Photoelectric Sensor (Part No: 50117928 ) offers a Throughbeam principle, 0... 15 m operating range, M12 Connector 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS28/9D-M12 |
Leuze LS28/9D-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 28 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 15 m |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension | 15 mm x 46.5 mm x 31.8 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 25 g |
Mail Us for your needs in Leuze 31.8 mm Length Transmitter Sensor LS28/9D-M12 part no: 50117928 with budget-friendly prices. The Main Technical Parameters of LS28/9D-M12, 50117928 include 28 series, Throughbeam, Transmitter device, deactivation input special version, 0... 15 m operating range, LED, Red light source, 620 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 15 mA current, M12 Connector, 4-pin, 15 mm x 46.5 mm x 31.8 mm dimensions, M18 thread size, Black, Red housing color, LED display, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 31.8 mm Length Transmitter Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
