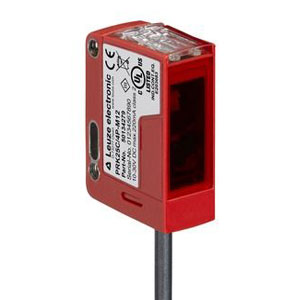

Leuze LS25C/8X Photoelectric Sensor
The Leuze LS25C/8X Photoelectric Sensor (Part No: 50139691 ) offers a Throughbeam principle, 0... 30 m operating range, PUR Cable, 2m Length 4-wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS 5 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS25C/8X |
Leuze LS25C/8X Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 25 Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 30 m |
| Light source | LED, Red |
| Wavelength | - |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 4-wire |
| Dimension | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 55 g |
IndMALL dealing Leuze Through-hole Mounting with M4 Thread Sensor LS25C/8X part no: 50139691 at affordable rates. Core System Specifications of LS25C/8X, 50139691 feature 25C series, Throughbeam, Transmitter device, activation input special version, 0... 30 m operating range, LED, Red light source, 10 ... 30 V, DC power supply, 0 ... 20 mA current, PUR Cable, 2m Length, 4-wire, PUR material, 15 mm x 42.7 mm x 30 mm dimensions, Red housing color, LED display, IP 67, IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze Through-hole Mounting with M4 Thread Sensor. Our commitment to better pricing and exceptional support sets us apart from other Distributors.
