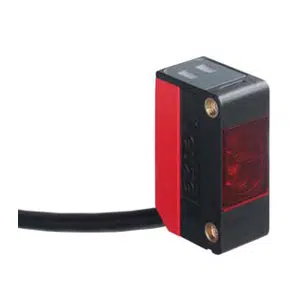

Leuze LE5/4 Photoelectric Sensor
The Leuze LE5/4 Photoelectric Sensor (Part No: 50132417 ) offers a 0 ... 8 m
operating range, Transistor, PNP
output, 2000 mm PUR Cable 3 -wire
. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE5/4 |
Leuze LE5/4 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 5 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 8 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2000 mm PUR Cable |
| Number of conductors or Pins | 3 -wire |
| Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 70 g |
Call us for Leuze 8 m Operating range Through Beam Receiver Sensor LE5/4 part no: 50132417 at competitive rates. Technical Attributes of LE5/4, 50132417 feature 5 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 1 Piece(s) digital switching output, Transistor, PNP
output, Light switching, 500 Hz
frequency, 2000 mm PUR Cable, 3 -wire
, 14 mm x 32.5 mm x 20.2 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 8 m Operating range Through Beam Receiver Sensor.
