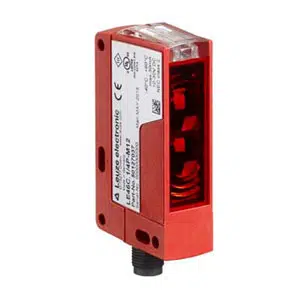

Leuze LE46CI.1/4P-M12 Photoelectric Sensor

Name: Leuze LE46CI.1/4P-M12 50127040
Brand: Leuze
SKU: LE46CI.1/4P-M12
Rating: 4.7 (4 reviews)

The Leuze LE46CI.1/4P-M12 Photoelectric Sensor (Part No: 50127040 ) offers a 0.5 ... 120 m operating range, Transistor, PNP output, M12 Connector 4-pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.

Datasheet

Brand	Leuze
Product Type	Photoelectric Sensor
Product	LE46CI.1/4P-M12

Leuze LE46CI.1/4P-M12 Photoelectric Sensor – Technical Specifications

Specification	Value
Series	LS 46C Series
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0.5 ... 120 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 20 mA
Number of digital switching outputs	2 Piece(s)
Switching Output	Transistor, PNP
Switching Principle	Light switching/Dark switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	M12 Connector
Number of conductors or Pins	4-pin
Dimension (W x H x L)	20.5 mm x 76.3 mm x 44 mm
Housing material	Plastic: PC-PBT
Lens cover material	Plastic / PMMA
Housing color	Red
Type of display	LED
Ambient temperature	operation -40 ... 60 °C storage -40 ... 70 °C
Degree of protection	IP 67, IP 69K
Net weight	60 g

Mail Us for your needs in Leuze PC-PBT Material Receiver Sensor LE46CI.1/4P-M12 part no: 50127040 with budget-friendly prices. The Main Technical Parameters of LE46CI.1/4P-M12, include 46C series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 500 Hz frequency, M12 Connector, 4-pin, 20.5 mm x 76.3 mm x 44 mm dimensions, Red housing color, LED display, IP 67, IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze PC-PBT Material Receiver Sensor.
