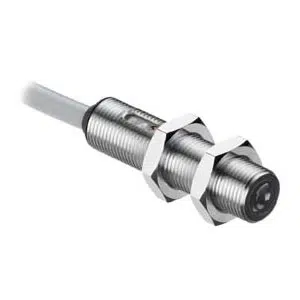

Leuze LE412BL2.1/P Photoelectric Sensor
The Leuze LE412BL2.1/P Photoelectric Sensor (Part No: 50140169 ) offers a 0 ... 50 m
operating range, Transistor, NPN output, 2000 mm PVC Cable 3 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE412BL2.1/P |
Leuze LE412BL2.1/P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 412B Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 50 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 10 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching Principle | Dark switching |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Readiness delay | 20 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2000 mm PVC Cable |
| Number of conductors or Pins | 3 -wire |
| Dimension (W x H x L) | 12 mm x 51 mm |
| Housing material | Stainless steel |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature | operation -10 ... 50 Β°C |
| Degree of protection | IP 67 |
| Net weight | 100 g |
IndMALL Automation Offers Leuze Dark Switching Receiver Sensor LE412BL2.1/P part no: 50140169 with exclusive offers. Component Specifications of LE412BL2.1/P, are 412B series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 10 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Dark switching, 5,000 Hz frequency, 2000 mm PVC Cable, 3 -wire, 12 mm x 51 mm dimensions, Silver housing color, LED
display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Dark Switching Receiver Sensor.
