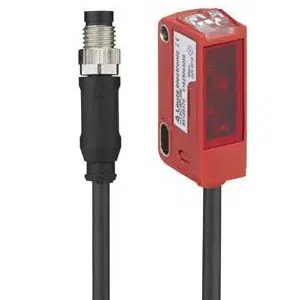

LE3CL1.1/6G-200-M8: 50137941 - Leuze Push-pull Receiver Sensor
Technical Specifications of Leuze LE3CL1.1/6G-200-M8 50137941
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE3CL1.1/6G-200-M8 |
Leuze Push-pull Receiver Sensor LE3CL1.1/6G-200-M8, 50137941 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| O/P 1: Switching Output | Transistor, Push-pull |
| O/P 1: Switching Principle | Light switching (PNP)/dark switching (NPN) |
| O/P 2: Switching Output | Transistor, Push-pull |
| O/P 2: Switching Principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 3,000 Hz |
| Response time | 0.16 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PUR 200 mm cable with M8 connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 20 g |
Give Us a Call for Leuze Push-pull Receiver Sensor LE3CL1.1/6G-200-M8 part no: 50137941 at the lowest pricing. In-depth Technical Analysis of LE3CL1.1/6G-200-M8, 50137941 feature 3C series, Throughbeam principle, Receiver device, 10 ... 30 V, DC power supply,2 Piece(s) digital switching output, Transistor, Push-pull, Light switching (PNP)/dark switching (NPN) output 1, Transistor, Push-pull, Dark switching (PNP)/light switching (NPN) output 2, 3,000 Hz frequency, PUR 200 mm cable with M8 connector, 4 -pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Push-pull Receiver Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
