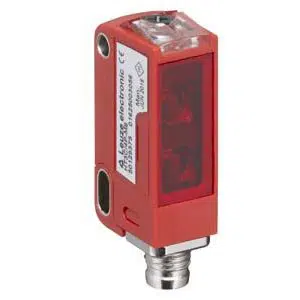

Leuze LE3C/4W-M8 Photoelectric Sensor
The Leuze LE3C/4W-M8 Photoelectric Sensor (Part No: 50137189 ) offers a Throughbeam principle, Transistor, PNP output, M8 Connector 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LE Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE3C/4W-M8 |
Leuze LE3C/4W-M8 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | 3C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | Light switching |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | UB switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 10 g |
Send Us an Email for Leuze 0.5ms Response time Receiver Sensor LE3C/4W-M8 part no: 50137189 with budget-friendly prices. Technical Attributes of LE3C/4W-M8, 50137189 includes 3C series, Throughbeam principle, Receiver device, Warning output Special Version 10 ... 30 V, DC power supply,2 Piece(s) digital switching output, Transistor, PNP, Light switching output 1, Transistor, PNP, UB switching output 2, 1,000 Hz frequency, M8 Connector, 4 -pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Now's the Time to Secure Quote for your requirement of Leuze 0.5ms Response time Receiver Sensor. Rest assured, our pricing and support outshine other Suppliers.
