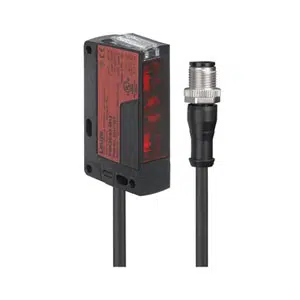

Leuze LE36.1/PX-200-M12 Photoelectric Sensor
The Leuze LE36.1/PX-200-M12 Photoelectric Sensor (Part No: 50147135 ) offers a 0.5 ... 80 m
operating range, Transistor, PNP output, 200 mm PUR Cable with M12 Connector 4-wire and 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE36.1/PX-200-M12 |
Leuze LE36.1/PX-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 36 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0.5 ... 80 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Dark switching |
| Switching frequency | 300 Hz |
| Response time | 1.66 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 200 mm PUR Cable with M12 Connector |
| Number of conductors or Pins | 4-wire and 4 -pin |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic: PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 65 g |
Obtain a Quote for Leuze 1.66 ms Response Time Through Beam Receiver Sensor LE36.1/PX-200-M12 part no: 50147135 at attractive prices. Core System Specifications of LE36.1/PX-200-M12, are 36 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s)
digital switching output, Transistor, PNP output, Dark switching, 300 Hz frequency, 200 mm PUR Cable with M12 Connector, 4-wire and 4 -pin, 20.5 mm x 76.3 mm x 44 mm
dimensions, Black housing color, LED
display, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 1.66 ms Response Time Through Beam Receiver Sensor.
