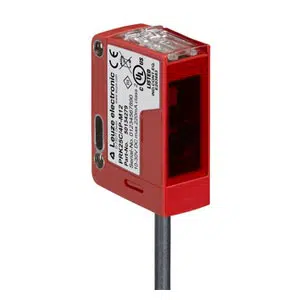

Leuze LE25C/4P Photoelectric Sensor
The Leuze LE25C/4P Photoelectric Sensor (Part No: 50139701 ) offers a 0 ... 25 m operating range, Transistor, PNP output, 2,000 mm PUR Cable 4 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE25C/4P |
Leuze LE25C/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 25C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 25 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/UB switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2,000 mm PUR Cable |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | - |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 55 g |
Mail Us for your needs in Leuze UB switching Through Beam Receiver Sensor LE25C/4P part no: 50139701 with budget-friendly prices. The Main Technical Parameters of LE25C/4P, include 25C
series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s)
digital switching output, Transistor, PNP output, Light switching/UB switching, 1,500 Hz frequency, 2,000 mm PUR Cable, 4 -wire, 15 mm x 42.7 mm x 30 mm
dimensions, Red housing color, - display, IP 67, IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze UB switching Through Beam Receiver Sensor.
