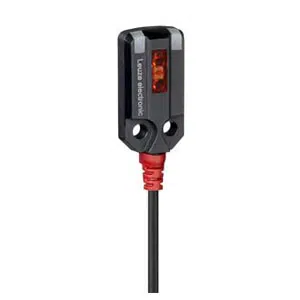

Leuze LE22/N Photoelectric Sensor
The Leuze LE22/N Photoelectric Sensor (Part No: 50140123 ) offers a 0 ... 1 m
operating range, Transistor, NPN output, 2000 mm PVC Cable 3 -wire
. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE22/N |
Leuze LE22/N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 22 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 1 m |
| Power Supply | 11 ... 26 V, DC, Incl. residual ripple |
| Open-circuit current | - |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching Principle | Light switching |
| Switching frequency | - |
| Response time | 0.5 ms |
| Readiness delay | 100 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | 2000 mm PVC Cable |
| Number of conductors or Pins | 3 -wire |
| Dimension (W x H x L) | 16.2 mm x 30 mm x 6.8 mm |
| Housing material | Plastic: PC-PBT |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature | operation -25 ... 55 Β°C storage -25 ... 75 Β°C |
| Degree of protection | IP 67 |
| Net weight | - |
Call us for Leuze 1m Operating Range Through Beam Receiver Sensor LE22/N part no: 50140123 at competitive rates. Technical Attributes of LE22/N, are 22 series, Throughbeam principle
, Receiver device, 11 ... 26 V, DC, Incl. residual ripple power supply, - current, 1 Piece(s) digital switching output, Transistor, NPN output, Light switching
, - frequency, 2000 mm PVC Cable, 3 -wire
, 16.2 mm x 30 mm x 6.8 mm dimensions, Black
housing color, LED display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 1m Operating Range Through Beam Receiver Sensor.
