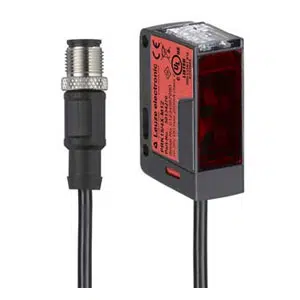

Leuze LE15/4X-200-M12 Photoelectric Sensor
The Leuze LE15/4X-200-M12 Photoelectric Sensor (Part No: 50138592 ) offers a 0 ... 25 m operating range, Transistor, PNP output, 200 mm PUR Cable with M12 Connector 4 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE15/4X-200-M12 |
Leuze LE15/4X-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 15 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | 0 ... 25 m |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 200 mm PUR Cable with M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 22 g |
Send Us an Email for Leuze Cable 200 mm Through Beam Receiver Sensor LE15/4X-200-M12 part no: 50138592 with the special pricing. Product Tech Specs of LE15/4X-200-M12, 50138592 feature 15 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple
power supply, 0 ... 20 mA current, 1 Piece(s) digital switching output, Transistor, PNP output, Light switching
, 500 Hz frequency, 200 mm PUR Cable with M12 Connector, 4 -pin, 15 mm x 42.7 mm x 30 mm dimensions, Black
housing color, LED display, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Cable 200 mm Through Beam Receiver Sensor.
