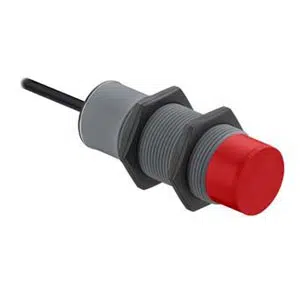

Leuze LCS-2M30P-N30PNC-K020V Proximity Sensor
The Leuze LCS-2M30P-N30PNC-K020V Proximity Sensor delivers 2–30 mm capacitive sensing, PNP normally closed output, and 10–30 V DC supply. This Leuze proximity sensor features a non-embedded M30 cylindrical design, 24.3 mm assured switching distance, IP67 protection, and a 3-wire PVC cable 2000 mm connection, and belongs to the Leuze Proximity Sensor category within the LCS series, declaring the LCS-2M30P-N30PNC-K020V as a Leuze 24.3mm Switching Distance Sensor.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30P-N30PNC-K020V |
Leuze LCS-2M30P-N30PNC-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 24.3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30P-N30PNC-K020V Leuze 24.3mm Switching Distance Sensor is a proximity sensor designed for non-contact detection in industrial automation systems. The LCS-2M30P-N30PNC-K020V operates with a 2–30 mm sensing distance, PNP normally closed switching output, and 10–30 V DC operating voltage. It belongs to the LCS series and is used in industrial automation environments.
This Leuze proximity sensor is commonly applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. It enables reliable detection of materials through stable capacitive sensing, maintaining consistent switching behavior under vibration, dust exposure, and continuous operational conditions.
The LCS-2M30P-N30PNC-K020V Leuze 24.3mm Switching Distance Sensor combines defined sensing performance with electrical stability and mechanical compatibility. With its IP67-rated enclosure, adjustable sensitivity via multiturn potentiometer, and fixed PVC cable connection, this Leuze proximity sensor is suitable for long-term industrial installations requiring predictable normally closed output operation.
