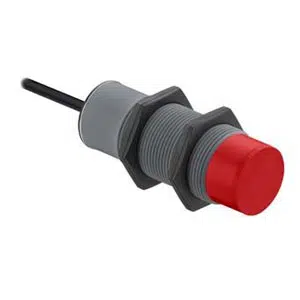

LCS-2M30P-N30NNC-K020V: 50136628 - Leuze 30mm NPN NC Capacitive Sensor
Technical Specifications of Leuze LCS-2M30P-N30NNC-K020V 50136628:
| Design | Cylindrical |
| Sensing Distance | 2 ... 30 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze 30mm NPN NC Capacitive Sensor LCS-2M30P-N30NNC-K020V, 50136628 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 24.3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Γ x L) | 30 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for Leuze 30mm NPN NC Capacitive Sensor LCS-2M30P-N30NNC-K020V part no: 50136628 at the lowest pricing. Technical Specs Summary of LCS-2M30P-N30NNC-K020V, 50136628 are LCS-2 series, 2 ... 30 mm sensing distance, 24.3 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, PVC,Cable 2,000 mm Length, 3 -wire, Cylindrical, 30 mm x 85 mm dimension, Non-embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 30mm NPN NC Capacitive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
