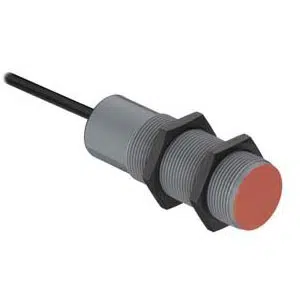

Leuze LCS-2M30P-F20PNO-K020V Proximity Sensor
Leuze LCS-2M30P-F20PNO-K020V proximity sensor provides 16.2 mm assured capacitive switching with PNP NO output embedded M30 housing design format. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 3-wire PVC cable connection, and offers IP67 protection with sensitivity adjustment via multiturn potentiometer, placing it within the Leuze portfolio, under Leuze Proximity Sensor, and as part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30P-F20PNO-K020V |
Leuze LCS-2M30P-F20PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30P-F20PNO-K020V Leuze 20mm PNP NO Capacitive Sensor is a proximity sensor designed for capacitive object detection in industrial automation systems. This model supports a 16.2 mm assured switching distance, operates on 10–30 V DC, and uses a PNP normally open output for defined control logic. It belongs to the LCS series and is applied in industrial automation environments requiring embedded capacitive sensing.
In industrial applications, the LCS-2M30P-F20PNO-K020V proximity sensor is used in conveyors, packaging machines, automated assembly lines, and material handling equipment. The M30 cylindrical embedded design enables flush installation in machine structures, while adjustable sensitivity supports stable detection of varying materials. Its specified switching frequency allows reliable signal processing within PLC-based automation systems.
The LCS-2M30P-F20PNO-K020V proximity sensor reflects Leuze standards for electrical stability and environmental resistance. With IP67 protection, controlled operating current, and a defined ambient temperature range, it is suitable for continuous industrial operation. As a Leuze 20mm PNP NO Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation systems requiring consistent capacitive detection.
